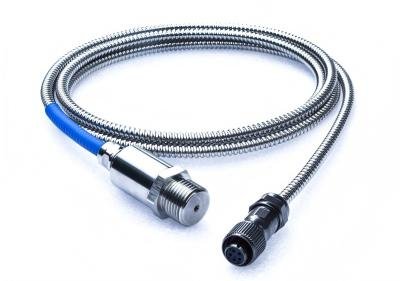

WF2450M Digital Pressure & Temperature Sensor
In Stock
WF2450M Series are pressure sensors designed for explosion-proof environments, built with a stainless steel welded construction. An integrated MEMS sensing element, 24-bit ADC, and DSP compensation chip perform onboard digital conversion and temperature compensation, delivering accurate pressure and temperature data via I²C.
Datasheet: WF2450M Digital Pressure Sensor
Related Resources
- Designed for explosion-proof environments
- 24-bit ADC with DSP temperature compensation
- Simultaneous pressure and temperature I²C interface output
- Straightforward digital integration with host controllers and data acquisition systems commonly used in industrial installations
| Key Attributes | |
|---|---|
| Pressure Range: | 0~3MPa Explosion-proof Pressure Sensors, Transducers - Industrial RoHS |
| Absolute Pressure Accuracy error: | ±0.5% FS |
| Relative accuracy: | ±0.3hPa |
| Temperature accuracy: | ± 0.5°C |
| Temperature Compensation: | -40 ℃ ~ +125 ℃ |
| Waterproof Rating: | IP68 |
| Svarrate: | 5ms |
| OverPressure: | 3X Damage pressure |
| Funktioner: | Integrated ADC and digital interface;Standby mode;On-chip calibration and non-volatile storage;On-chip temperature output |
| Pressure Media is Non-Corrosive Gases Only | |
| RoHS-kompatibel og halogenfri | |
| Type | Details |
|---|---|
| RoHS | REACH and RHOS |
| ECCN | |
| CNHTS | 9026201090 |
| USHTS | 9026204000 |
| TARIC | 9026208000 |
| CAHTS | 9026200090 |
| BRHTS | 90262010 |
| INHTS | 90262000 |
| MXHTS | 9026.20.99 |
Ansøgninger
Home Appliance Industry
Medical and Health Industry
Forbrugerelektronikindustri
Automobile Electronic Industry
Industrial Monitor and Control Industry
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
